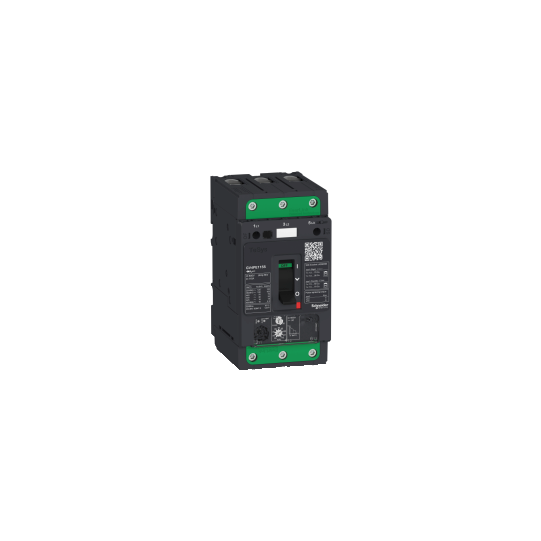

TeSys GV - disjoncteur magnéto-thermique - In 115A - 50kA - Everlink - GV4PE115N
GV4PE115N
€236.08 Excl. Tax
€283.30 Inc. Tax
Excl. Tax
Excl. Tax
Incl. Tax
Incl. Tax
You save
In stock – Dispatched within 24/48h
- Technical support and dedicated single point of contact
- Free delivery from 200€ of purchase (Metropolitan France)
- 100% secure payments
Technical informations
| Range: | TeSys |
|---|---|
| Product name: | TeSys GV4 |
| Product or component type: | Circuit breaker |
| Device short name: | GV4PE |
| Device application: | Motor protection |
| Protection type: | Short time short-circuit protectionOverloadGround fault protectionPhase unbalanceShort-circuitPhase loss |
| Utilisation category: | Category A |
| Suitability for isolation: | Yes conforming to IEC 60947-1 |
| Poles description: | 3P |
| [Ue] rated operational voltage: | 690 V AC 50/60 Hz conforming to IEC 60947-2 |
| [In] rated current: | 115 A |
| Trip unit technology: | ElectronicThermal-magnetic |
| Magnetic tripping current: | 1955 A |
| [Isd] short-time pick-up adjustment range: | 13 x Ir |
| Thermal protection adjustment range: | 65...115 A |
| Motor tripping class: | 1020 |
| Phase failure sensitivity: | Yes conforming to IEC 60947-4-1 |
| Breaking capacity: | Icu 100 kA at 220...240 V AC 50/60 Hz conforming to IEC 60947-2Icu 50 kA at 380...415 V AC 50/60 Hz conforming to IEC 60947-2Icu 50 kA at 440 V AC 50/60 Hz conforming to IEC 60947-2Icu 15 kA at 525 V AC 50/60 Hz conforming to IEC 60947-2 65 kA at 208Y/120 V AC 50/60 Hz conforming to UL 60947 65 kA at 240 V AC 50/60 Hz conforming to UL 60947 35 kA at 480Y/277 V AC 50/60 Hz conforming to UL 60947Icu 8 kA at 660...690 V AC 50/60 Hz conforming to IEC 60947-2Icu 25 kA at 500 V AC 50/60 Hz conforming to IEC 60947-2 18 kA at 600Y/347 V AC 50/60 Hz conforming to UL 60947 |
| [Ics] rated service breaking capacity: | 100 kA at 220...240 V AC 50/60 Hz conforming to IEC 60947-250 kA at 380...415 V AC 50/60 Hz conforming to IEC 60947-250 kA at 440 V AC 50/60 Hz conforming to IEC 60947-225 kA at 500 V AC 50/60 Hz conforming to IEC 60947-215 kA at 525 V AC 50/60 Hz conforming to IEC 60947-22 kA at 660...690 V AC 50/60 Hz conforming to IEC 60947-2 |
| [Uimp] rated impulse withstand voltage: | 8 kV conforming to IEC 60947-2 |
| [Ui] rated insulation voltage: | 800 V conforming to IEC 60947-2 |
| Mechanical durability: | 40000 cycles |
| Electrical durability: | 10000 cycles for AC-3 at 440 V In/25000 cycles for AC-3 at 440 V In |
| Motor power kW: | 37 kW at 400...415 V AC 50/60 Hz45 kW at 400...415 V AC 50/60 Hz55 kW at 400...415 V AC 50/60 Hz45 kW at 500 V AC 50/60 Hz55 kW at 500 V AC 50/60 Hz75 kW at 500 V AC 50/60 Hz75 kW at 660...690 V AC 50/60 Hz90 kW at 660...690 V AC 50/60 Hz110 kW at 660...690 V AC 50/60 Hz |
|---|---|
| Control type: | Toggle |
| Rotary handle padlocking: | With a lock accessory |
| Number of slots: | 1 slot(s) for alarm switch for fault signalling contact, plug-in1 slot(s) for voltage release for electrical remote tripping, plug-in1 slot(s) for auxiliary switch for open/close contact, plug-in |
| Local signalling: | Flashing LED (green) for readyLED (red) for alarm (T° >95%)Green indicator for presence of auxiliary contacts |
| Standards: | EN/IEC 60947-4-1UL 60947-4-1CSA C22.2 No 60947-4-1EN/IEC 60947-2 |
| Product certifications: | IECULCSACCCEACATEXEU-RO MR |
| Quality labels: | CE |
| Mounting mode: | By clipsBy screws |
| Mounting support: | 75 mm symmetrical DIN railPlate35 mm symmetrical DIN rail |
| Connections - terminals: | Top 1 EverLink BTR screw connectors wire size 1.5...70 mm², solidTop 1 EverLink BTR screw connectors wire size 1.5...50 mm², flexibleBottom 1 EverLink BTR screw connectors wire size 2.5...95 mm², solidBottom 1 EverLink BTR screw connectors wire size 2.5...70 mm², flexible |
| Connection pitch: | 27 mm |
| Wire stripping length: | 20 mm |
| Tightening torque: | 9 N.m for 16...95 mm²5 N.m for 1.5...10 mm² |
| Width: | 81 mm |
| Height: | 155 mm |
| Depth: | 116 mm |
| Net weight: | 1.45 kg |
| Colour: | Grey (RAL 7016) |
