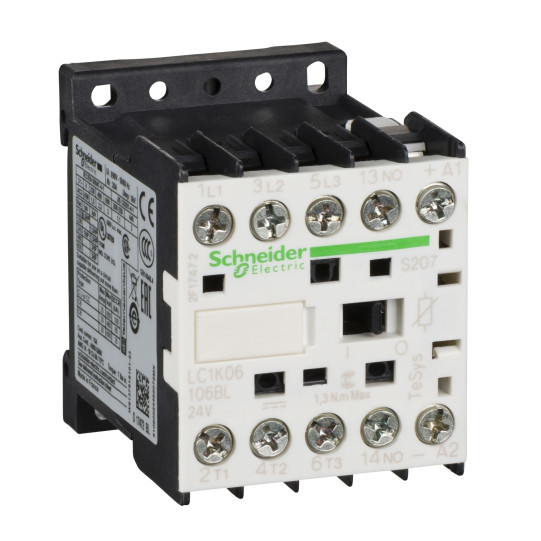

TeSys K contactor - 3P - AC-3 <= 440 V 6 A - 1 NC aux. - 24 V DC low - LC1K06016BLS207
LC1K06016BLS207
39,58 € HT
47,50 € TTC
HT
HT
TTC
TTC
Vous économisez
En cours d’approvisionnement – Délai moyen 4/6 semaines
- Support technique et interlocuteur unique dédié
- Livraison offerte dès 100€ d’achat (France Métropolitaine)
- Paiements 100% sécurisés
Informations techniques
| Range of product : | TeSys K |
|---|---|
| Range : | TeSys |
| Product or component type : | Contactor |
| Product name : | TeSys K |
| Device short name : | LC1K |
| Device application : | Control |
| Contactor application : | Motor controlResistive load |
| Utilisation category : | AC-3AC-1 |
|---|---|
| Poles description : | 3P |
| Pole contact composition : | 3 NO |
| [Ue] rated operational voltage : | Power circuit: 690 V AC 50/60 HzSignalling circuit: |
| [Ie] rated operational current : | 6 A at |
| Control circuit type : | DC low consumption |
| [Uc] control circuit voltage : | 24 V DC |
| Motor power kW : | 1.5 kW at 220...230 V AC 50/60 Hz2.2 kW at 380...415 V AC 50/60 Hz3 kW at 500...600 V AC 50/60 Hz3 kW at 440/500 V AC 50/60 Hz3 kW at 660/690 V AC 50/60 Hz0.37 kW at 115 V AC 50/60 Hz0.75 kW at 220 V AC 50/60 Hz |
| Auxiliary contact composition : | 1 NC |
| [Uimp] rated impulse withstand voltage : | 8 kV |
| Overvoltage category : | III |
| [Ith] conventional free air thermal current : | 20 A (at 50 °C) for power circuit10 A (at 50 °C) for signalling circuit |
| Irms rated making capacity : | 110 A AC for power circuit conforming to NF C 63-110110 A AC for power circuit conforming to IEC 60947110 A AC for signalling circuit conforming to IEC 60947 |
| Rated breaking capacity : | 110 A at 415 V conforming to IEC 60947110 A at 440 V conforming to IEC 6094780 A at 500 V conforming to IEC 60947110 A at 220...230 V conforming to IEC 60947110 A at 380...400 V conforming to IEC 6094770 A at 660...690 V conforming to IEC 60947 |
| [Icw] rated short-time withstand current : | 90 A 50 °C - 1 s for power circuit85 A 50 °C - 5 s for power circuit80 A 50 °C - 10 s for power circuit60 A 50 °C - 30 s for power circuit45 A 50 °C - 1 min for power circuit40 A 50 °C - 3 min for power circuit20 A 50 °C - >= 15 min for power circuit80 A - 1 s for signalling circuit90 A - 500 ms for signalling circuit110 A - 100 ms for signalling circuit |
| Associated fuse rating : | 25 A gG at 10 A gG for signalling circuit conforming to IEC 6094710 A gG for signalling circuit conforming to VDE 0660 |
| Average impedance : | 3 mOhm - Ith 20 A 50 Hz for power circuit |
| [Ui] rated insulation voltage : | Power circuit: 690 V conforming to IEC 60947-4-1Signalling circuit: 690 V conforming to IEC 60947-4-1Signalling circuit: 690 V conforming to IEC 60947-5-1Power circuit: 750 V conforming to VDE 0110 group CPower circuit: 690 V conforming to BS 5424Power circuit: 690 V conforming to NF C 20-040 |
| Insulation resistance : | > 10 MOhm for signalling circuit |
| Inrush power in W : | 1.8 W (at 20 °C) |
| Hold-in power consumption in W : | 1.8 W at 20 °C |
| Heat dissipation : | 1.8 W |
| Control circuit voltage limits : | Operational: 0.7...1.3 Uc (at Drop-out: >= 0.10 Uc (at |
| Connections - terminals : | Power circuit: lugs-ring terminals (external diameter: 7 mm) |
| Maximum operating rate : | 3600 cyc/h |
| Coil technology : | With integral suppression device |
| Auxiliary contacts type : | type instantaneous 1 NC |
| Signalling circuit frequency : | |
| Minimum switching current : | 5 mA for signalling circuit |
| Minimum switching voltage : | 17 V for signalling circuit |
| Mounting support : | RailPlate |
| Tightening torque : | Power circuit: 1.3 N.m - on lugs-ring terminals - with screwdriver flat Ø 6 mm3.2 mmPower circuit: 1.3 N.m - on lugs-ring terminals - with screwdriver Philips No 23.2 mm |
| Operating time : | 10...20 ms coil de-energisation and NO opening30...40 ms coil energisation and NO closing |
| Safety reliability level : | B10d = 1369863 cycles contactor with nominal load conforming to EN/ISO 13849-1B10d = 20000000 cycles contactor with mechanical load conforming to EN/ISO 13849-1 |
| Non overlap distance : | 0.5 mm |
| Mechanical durability : | 30 Mcycles |
| Electrical durability : | 1.3 Mcycles 6 A AC-3 at Ue |
| Mechanical robustness : | Shocks contactor closed, on X axis: 10 Gn for 11 ms conforming to IEC 60068-2-27Shocks contactor closed, on Y axis: 15 Gn for 11 ms conforming to IEC 60068-2-27Shocks contactor closed, on Z axis: 15 Gn for 11 ms conforming to IEC 60068-2-27Shocks contactor opened, on X axis: 6 Gn for 11 ms conforming to IEC 60068-2-27Shocks contactor opened, on Y axis: 10 Gn for 11 ms conforming to IEC 60068-2-27Shocks contactor opened, on Z axis: 10 Gn for 11 ms conforming to IEC 60068-2-27Vibrations contactor closed: 4 Gn, 5...300 Hz conforming to IEC 60068-2-6Vibrations contactor opened: 2 Gn, 5...300 Hz conforming to IEC 60068-2-6 |
| Height : | 58 mm |
| Width : | 45 mm |
| Depth : | 57 mm |
| Product weight : | 0.235 kg |
En bref
Référence LC1K06016BLS207
Nom du produit TeSys K contactor - 3P - AC-3 <= 440 V 6 A - 1 NC aux. - 24 V DC low - LC1K06016BLS207
